Coltri Eolo low pressure compressor
Coltri Eolo low pressure compressor
Couldn't load pickup availability

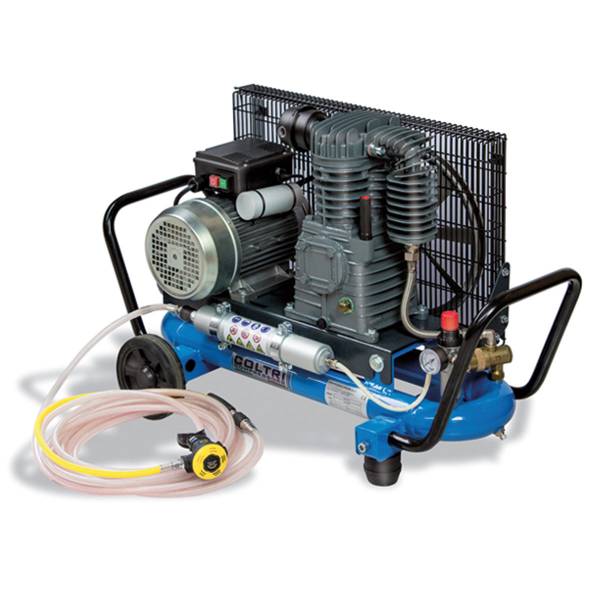

Coltri EOLO low pressure compressor , designed to work under the hull and on the seabed beneath your vessel without time limits.
The compressor in its configuration is complete with 25 meters of hose and second breathing stage.
|
MOTOR |
Single-phase electric |
Three-phase electric |
|
OUTGOING AIR |
300 L/min - 19.8 m3/h |
300 L/min - 19.8 m3/h |
|
OPERATING PRESSURE |
8 bar / 120 psi |
8 bar / 120 psi |
|
POWER |
2.2 kW 14 A (230V-50/60 Hz) Ampere absorbed |
3 kW 11.5 A (230/400V-50Hz) 6.7 A (230V-60 Hz) Ampere absorbed |
|

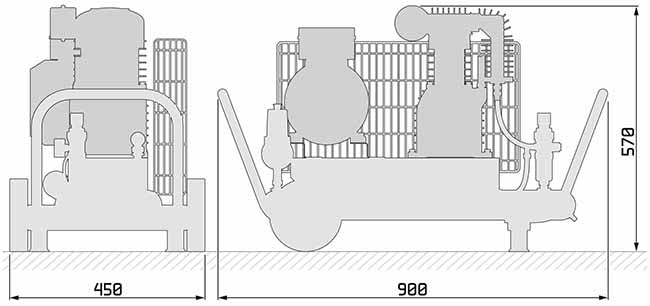

DIMENSIONS |
51 x 78 x 45 cm |
51 x 78 x 45 cm |
|
NET WEIGHT |
55 kg |
55 kg |
|
AIR TANK CAPACITY |
4.5 liters |
4.5 liters |
|
NOISE LpA |
81.7 |
83 dB (LWA) |
|
NUMBER OF STAGES AND CYLINDERS |
2 |
2 |
|
FILTER |
Cartridge filter system with molecular sieve and activated carbon |
Cartridge filter system with molecular sieve and activated carbon |
|
VALVE |
Safety valve on the 11 bar tank |
Safety valve on the 11 bar tank |
|
COOLERS |
Aluminum interstage final cooling tubes |
Aluminum interstage final cooling tubes |
